NVR Testing

Why Particulate and NVR Testing Matters for Precision Cleaned Components

Precision cleaning utilizes specialized processes like ultrasonic agitation, high-purity fluids, and cleanroom protocols to remove microscopic debris from complex components. Components must meet stringent cleanliness specs for applications from aviation systems to pharmaceutical manufacturing.

Afterwards, visual examinations under magnification check for obvious particulate and film contamination. However, significant invisible threats always remain undetectable to the naked eye. Microscopic nonvolatile residues or tiny particles clinging to critical surfaces can secretly degrade production quality and throughput.

While visual methods provide a useful first check, they cannot guarantee necessary levels of cleanliness alone. Advanced contamination testing is essential for safety-critical applications where cleanliness is paramount.

Rather than gamble on visual-only verification, particulate measurement and NVR testing provides definitive proof that precision cleaned components meet rigorous cleanliness standards. High-magnification particle counting and gravimetric NVR testing deliver quantitative contamination validation beyond visible means.

In this article, we’ll explore why relying solely on visual inspection fails and how advanced particulate and NVR testing methods provide indispensable precision cleaning verification.

First, we’ll look at the hidden threat of microscopic particulate contamination and its potential consequences.

Then, we’ll examine nonvolatile residue testing concepts and procedures. Finally, we’ll discuss partnering with experts to implement essential contamination testing that goes beyond the visible to guarantee component cleanliness.

Key take-aways:

  1. Particulate contamination can severely degrade system performance and functionality in ways not visible to the naked eye. Advanced testing is essential to verify cleanliness.
  2. Nonvolatile residue (NVR) refers to microscopic chemical film contamination that can lead to issues like degraded lubricity, damaged surfaces, and residue transfer.
  3. Standards like ASTM F312 and ASTM F331 provide critical, quantitative testing protocols for particulate and NVR beyond visual inspection.
  4. Flash evaporation apparatus enables controlled, reproducible concentration and preservation of NVR samples for accurate residue quantification.
  5. Precise analytical balances with microgram sensitivity are vital for measuring minute NVR masses indicating cleanliness.
  6. Partnering with testing experts provides standards-based particulate and NVR evaluation services without the high equipment costs and risks of in-house implementation.
  7. Quantitative verification aligning to cleanliness criteria is essential to confirm precision cleaning efficacy and prevent functionality or production issues from unseen contamination.

The Threat of Microscopic Particulate Contamination

Particulate contamination refers to unintended loose debris and particles that end up deposited on component surfaces. These microscopic contaminants come in many varieties including the following common forms:

  • Metal shards from manufacturing processes
  • Dust and dirt
  • Hair, skin cells, clothing fibers
  • Flakes from paints and coatings
  • Residues left from cleaning solutions

While invisible individually, collectively, the presence of particulate can severely degrade system performance. Sizing plays a key role in the potential damage, as smaller particles find their way into tiny orifices and gaps causing bigger issues. Particles range from visible widths of 40 microns down to a single micron where special microscopy is needed just to observe their presence after cleaning.

These elusive particles stealthily evade visual detection, yet contain shocking potential for impairment once components undergo assembly and use. Microscopic debris that avoids removal during precision cleaning can lead to any number of problems including:

  • Jamming/clogging of precision-machined openings
  • Interference with moveable component clearances
  • Impaired surface finishes
  • Compromised optical clarity
  • Electrical shorts and conductivity loss
  • Reactions with sensitive fluids or gases

The bottom line? While our eyes see nothing wrong, the concealed reality of particulate contamination poses grave unseen risks to downstream production and product functionality. Only advanced testing delivers the truth about the cleanliness of precision components after intricate cleaning preparation.

Going Deeper - Nonvolatile Residue - NVR Testing

While particulate contamination physically blocks openings and clearances, nonvolatile residue (NVR) causes issues through chemical means. NVR refers to microscopic film contamination that remains after liquid components have evaporated.

The composition depends on the materials used in manufacturing and cleaning. Sources of NVR include:

  • Chemical additives from process fluids
  • Dried cleaning solution residues
  • Metal salts and oxides
  • Greases, oils, waxes
  • Adhesives and coating remnants

The variety of polar and nonpolar substances making up NVR can make complete removal difficult, especially within microscopic cracks or blinded openings. Once solvents fully evaporate after cleaning, trace NVR deposits stay behind.

The chemical and physical interactions caused by nonvolatile films adversely impact production processes and component functionality in ways including:

  • Degraded lubricity and friction control
  • Thermal conductivity changes
  • Acid/base reactions damaging surfaces
  • Interference with electrical contacts
  • Impeded fluid transfer though capillaries
  • Residue transfer (like glue) when mating parts

With such severe effects in play from invisible NVR contamination, testing for cleanliness verification after precision cleaning becomes mission critical. Only advanced gravimetric testing accurately quantifies residual film amounts; visual appearances alone provide no reliable indicators.

Test Methods Provide Critical Verification

Validating precision cleaning processes relies on standardized test procedures that quantify contamination too small for visual detection. Two vital methods in cleanliness verification are particle counts per ASTM F312 and nonvolatile residue (NVR) gravimetric analysis via ASTM F331.

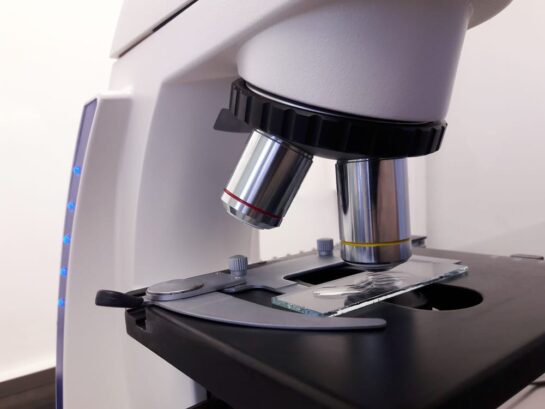

  • ASTM F312 outlines the protocol for sizing and counting particulate on surfaces. Samples get collected using solvent flushes across components. These solutions then undergo filter-based microscopy to tally particle quantities in ranges down to a single micron diameter. Comparing results to charts in IEST-STD-CC1246D confirms whether particulate levels meet predetermined cleanroom class limits.
  • For NVR, ASTM F331 addresses the test method utilizing evaporative flash heating and sensitive weighing vessels. Pre-cleaned parts undergo solvent flushes which get condensed using specialty apparatus. The dissolved residues remain and receive further heating until completely dried. By determining the residual mass left compared to the blank solvent, the nonvolatile contamination density per area gets calculated.

Cleanliness classifications like ISO 14644-1 assign maximum concentrations of particulate and films appropriate for applications based on factors like tolerance gaps or process sensitivities. Exceeding thresholds risks functionality loss, shortened lifetimes, or even complete system failures.

Only verified compliance to applicable cleanliness criteria through advanced testing ensures components meet requirements for proper operation after precision cleaning and prevents wasteful post-process rework. Tightening industry standards further necessitate these protocols.

The Critical Role of Flash Evaporation in NVR Testing

A flash evaporator system enables key aspects of NVR testing essential for reliable and accurate results. Specifically, flash evaporation facilitates:

Gentle Concentration:

  • The rotating flask and temperature-controlled water bath allow gradual, uniform evaporation to avoid losing nonvolatiles.
  • Vacuum pressures down to 10-24in Hg accelerate solvent removal without boil spikes.
  • Condenser drainage and separation continuously harvests evaporating volatile fractions.

Preservation of Integrity:

  • Low-temperature operation matching test fluid volatility points minimizes decomposition.
  • Smooth reduction to target volumes prevents reactions from aggressive heating.
  • Compounds enter the weighing phase without experiencing significant breakdown.

Precision and Reproducibility:

  • Parameter control around pressures, temps, flask motion, and drainage rates standardizes results.
  • Consistent vacuum streamlining of evaporation kinetics improves precision.
  • Systematized operation enables replicable measurement of residue loads.

By facilitating controlled acceleration of evaporation along with isolation and protection of residue molecules, flash systems produce representative NVR quantifications essential for elucidating true post-cleaning component cleanliness.

The Need for Precision Weighing in NVR Testing

Precise gravimetric measurements make or break reliable NVR testing. This differential weighing application depends on discerning minute mass changes.

The actual residues extracted from cleaned components comprise negligible traces within the overall solvent charge. Yet quantifying even microgram-scale loads can indicate excessive surface films above cleanliness thresholds.

This extreme sensitivity requirement demands analytical balances featuring 10 or 1 μg readability across 5-6 decimal places. When assessing high-purity fluids or components with barely detectable contamination, only the utmost weighing precision ensures residues were adequately eliminated below permissible levels during critical cleaning stages. Without uncompromising accuracy, uncertainty prevails whether nonvolatile contaminants were fully removed.

Partnering With NVR Testing Experts

Implementing advanced particulate and NVR testing in-house poses obstacles for many manufacturers. The techniques demand specialized instrumentation, customized procedures, and expert analysts. Seeking outside partnerships streamlines validating precision cleaning processes.

Conducting advanced cleanliness verification requires significant capital investment in equipment like particle counters, microscopes, flash evaporators, analytical balances, clean hoods, and more. Additionally, developing suitable sampling and analysis methods for specific component geometries and materials takes extensive experimentation. Excess handling risks recontamination.

By partnering with outsourced shops like Precision Fabricating & Cleaning, manufacturers gain immediate access to turnkey particulate and NVR testing services without acquisition and qualification costs. Experienced providers already codify the best practice methods and possess state-of-the-art tools. Strategic partnerships also foster continuity between cleaning and testing stages.

When selecting cleanliness verification specialists, manufacturers should seek:

  • Accredited scope covering key ASTM protocols
  • Examples with similar component types
  • Flexibility to tailor procedures as needed
  • Track record serving regulated industries
  • Cleanroom facilities preventing recontamination

By shifting the burden of particulate and NVR testing to qualified providers, manufacturers reduce risks, costs, and headaches while still validating precision cleaning processes. The proof of cleanliness supplements visual inspections with quantitative data aligned to application requirements.

In Conclusion

Validating precision cleaning processes is incomplete without advanced contamination testing. While visual inspection checks for obvious particulate and films, significant threats remain invisible to the naked eye after cleaning steps. Undetected nonvolatile residues and microscopic particles can degrade production processes, shorten component lifetimes, reduce yields, and cause failures.

Quantitative verification requires contamination measurements aligned to application cleanliness criteria. Particulate counting per ASTM F312 protocol and nonvolatile residue gravimetric analysis following ASTM F331 methods provide definitive cleanliness validation. Relying on visual examinations alone constitutes an unnecessary gamble.

As production trends demand tighter cleanliness regimes and regulations mandate stricter control, precision cleaning validation becomes essential. Partnering with testing experts like PFC minimizes costs while instantly providing standards-based particulate and NVR testing.

Manufacturers bringing new products, equipment, or processes online should have precision cleaning verification integrated from the start. The minimal time and expense to definitively confirm cleanliness via advanced testing prevents untold Issues later on. Why leave precision component purity to chance?

Contact PFC today to discuss tailoring particulate counting and NVR testing that goes beyond visual methods to guarantee cleanliness.
