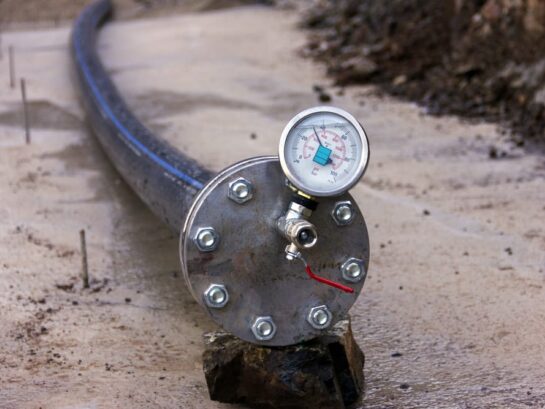

Proof Testing

Hydrostatic vs. Pneumatic Testing: Which Proof Testing Method is Right for Your Application?

Proof testing is a crucial process in various industries to ensure the safety, reliability, and integrity of components, pipelines, and pressure vessels. This non-destructive testing method involves exposing the item to pressures above normal operating levels under controlled conditions. The primary goal of proof testing is to confirm that the component can withstand the specified pressure without bursting, deforming, or leaking.

In this blog post, we will delve into the differences between hydrostatic and pneumatic testing, exploring their processes, equipment, and the factors to consider when choosing the appropriate method for your application.

By understanding the nuances of these testing methods, you can make informed decisions to ensure the safety and reliability of your components and systems.

Key Take-a-ways for Proof Testing

  1. Proof pressure testing is a critical process that ensures the safety, reliability, and integrity of components, pipelines, and pressure vessels by exposing them to pressures above normal operating levels under controlled conditions.
  2. Hydrostatic testing, which uses water as the test medium, is the most common and preferred method for proof pressure testing due to its effectiveness in detecting leaks and testing the strength of components designed to contain or transport liquids.
  3. Pneumatic testing, which utilizes compressed gases, is suitable for testing components that operate with gases or require a clean and dry testing environment. However, it poses higher risks due to the high stored energy in compressed gases and the potential for explosive energy release in case of a rupture.
  4. When selecting between hydrostatic and pneumatic testing, it is essential to consider factors such as safety concerns, the type of component being tested, and industry standards and regulations.
  5. Knowing the differences between working pressure, proof test pressure, and burst pressure is vital for safely designing, testing, and operating components and systems.
  6. Outsourcing proof testing to a reliable provider like Precision Fabricating & Cleaning ensures thorough testing and validation, allowing companies to focus on their core business with confidence.

Understanding Pressure Levels: Working, Proof, and Burst Pressures in Pressurized Systems

Working pressure, proof pressure, and burst pressure are three distinct pressure levels that are important to understand when dealing with pressurized systems.

  • Working pressure: The working pressure is the lowest of the three and refers to the normal operating pressure range of an item under typical working conditions. On the other hand, the proof pressure is higher than the working pressure and represents the maximum pressure that can be applied to the item, such as pipe fittings or flanges, without causing any permanent changes to its properties or quality.
  • Proof pressure testing: This is performed to verify that the item can withstand pressures above the normal working range without deforming or leaking. This testing can be done using two main methods: hydrostatic, which uses water, or pneumatic, which employs non-flammable and non-toxic gases like air or nitrogen.
  • Burst pressure: This is the highest level among the 3. It is defined as the maximum pressure an item can endure before experiencing catastrophic failure or rupture. When the pressure surpasses the burst pressure, the item will explode. To avoid damage during proof testing, a safety margin is maintained between the proof pressure and the burst pressure. This ensures that the item's integrity can be verified at pressures higher than the working range without risking permanent damage that would occur if the burst pressure limit is reached.

Proof Testing Methods: Hydrostatic and Pneumatic Testing

Proof testing is a crucial process that ensures the integrity and safety of pressurized components. There are two primary methods employed for conducting these tests: hydrostatic and pneumatic testing.

Hydrostatic testing involves using water as the test medium. The component is filled with water and then pressurized to a specified test pressure. This method allows for the detection of leaks and helps determine the component's strength by measuring any permanent deformation. Hydrostatic testing is the most commonly used proof testing method due to its safety and effectiveness.

On the other hand, pneumatic testing utilizes gases such as air, nitrogen, or other non-flammable and non-toxic gases as the test medium. While pneumatic testing can be effective, it is generally considered more dangerous than hydrostatic testing.

The compressed gas used in pneumatic testing contains a high amount of stored energy, which can lead to serious hazards if a rupture occurs during the test. A fracture in the component during pneumatic testing can cause an explosive release of energy, potentially resulting in shock waves, flying debris, and significant damage to equipment and personnel.

Both hydrostatic and pneumatic proof testing methods serve the essential purpose of verifying the strength and leak-tightness of pressurized components.

However, the choice between the two methods depends on various factors, including the type of component, the testing requirements, and the safety considerations specific to each application.

Advantages of hydrostatic testing

Most common method for proof testing: Hydrostatic testing is the most widely used method for proof testing. It is a well-established and accepted practice across various industries due to its reliability and effectiveness in detecting leaks and assessing the strength of components.

Suitable for detecting leaks and testing strength

Hydrostatic testing is an excellent method for detecting leaks and testing the strength of pipelines, vessels, and other components. By pressurizing the item with water and monitoring for any pressure loss or visible leaks, hydrostatic testing can identify even small leaks that may not be detectable through other methods. Pressure tightness can be tested by shutting off the supply valve and observing whether there is a pressure loss. Strength is usually tested by measuring permanent deformation after the test pressure is released. If the item returns to its original size without significant permanent deformation, it is considered to have passed the strength test.

Equipment used

Hydrostatic testing requires specialized equipment to pressurize and monitor the item being tested. One commonly used piece of equipment is the Sprague air-driven pump. These pumps are designed to deliver high-pressure liquids, making them suitable for hydrostatic testing applications. The pump ratios vary from 10:1 to 100:1, allowing for a wide range of test pressures to be achieved.

Applications and industries where hydrostatic testing is preferred

Hydrostatic testing is widely used in industries such as oil and gas, petrochemical, and power generation. It is particularly suitable for testing pipelines, pressure vessels, and other components that are designed to contain and transport liquids. Hydrostatic testing is also commonly used in the manufacturing and fabrication sectors to ensure the quality and integrity of newly produced components before they are put into service.

Advantages of pneumatic testing

One advantage of pneumatic testing is that it utilizes non-toxic and non-flammable gases, such as air or nitrogen. This makes pneumatic testing suitable for situations where the use of water or other liquids may be impractical or undesirable, such as testing components that are sensitive to moisture or require a clean and dry testing environment.

Suitable for certain applications

Pneumatic testing is particularly useful for testing components that operate with gases, such as compressed air systems, gas pipelines, and pneumatic equipment. It can also be used to test items that are difficult to fill with water or drain after testing, such as complex geometries or large volume vessels.

Applications and industries where pneumatic testing is used

One specific application of pneumatic testing is the proof testing of flexible hoses. In this process, the flex hose is submerged in water and pressurized with nitrogen gas. The hose is then checked for any visible bubbles, which would indicate leaks. The test is typically conducted for a specified duration, such as 1 minute, to ensure the integrity of the hose.

Equipment used

Pneumatic testing requires specialized equipment to compress and regulate the gas pressure. One common type of equipment used is the Haskel gas booster. These boosters are designed to compress industrial gases, such as nitrogen and helium, to high pressures, often up to 36,000 psi. The boosters are used to achieve the required test pressures for pneumatic testing applications.

Risks and dangers associated with pneumatic testing

While pneumatic testing is a valuable method for proof pressure testing, it is crucial to understand and mitigate the inherent risks and dangers associated with this technique. The use of compressed gases in pneumatic testing poses significant safety hazards that can have severe consequences if not properly addressed. Two primary concerns when conducting pneumatic tests are:

  • High stored energy in compressed gas: One significant risk associated with pneumatic testing is the high stored energy in compressed gases. Compared to liquids, compressed gases contain much more energy, which can pose serious safety hazards if not handled properly.
  • Potential for explosive release of energy upon rupture: In the event of a rupture during pneumatic testing, the compressed gas can release its stored energy explosively. This sudden release of energy can create shock waves and propel fragments of the ruptured item at high velocities, causing serious injuries and extensive damage to surrounding equipment and personnel. For example, the explosion of a 200 ft. section of 36 in. pipe containing 500 psi can create a blast wave nearly equivalent to 80 lb of TNT.


Understanding the differences between hydrostatic and pneumatic testing is essential for ensuring the safety, reliability, and integrity of various components and systems.

When choosing between hydrostatic and pneumatic testing, it is crucial to consider factors such as safety concerns, the type of component being tested, and industry standards and regulations.

For companies looking to outsource their proof testing needs, Precision Fabricating & Cleaning is the best partner to handle the testing process. With their extensive knowledge, experience, and state-of-the-art equipment, PFC can ensure that your components and systems are thoroughly tested and validated, allowing you to focus on your core business activities with confidence in the integrity of your products.

Start a conversation with PFC about your proof testing needs right here.
