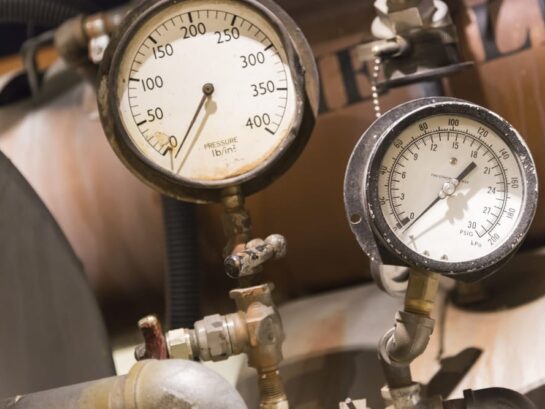

Understanding Pressure Gauge Accuracy: A Guide to Choosing the Right Level

Pressure gauges are ubiquitous in a wide range of industrial and commercial applications, from chemical processing and pharmaceutical manufacturing to hydraulic systems and HVAC controls.

Accurate pressure measurement is critical for ensuring process safety, product quality, and operational efficiency. However, not all pressure gauges are created equal when it comes to accuracy, and selecting the right level of accuracy is essential to meet the specific requirements of your application.

Pressure gauge accuracy is typically expressed as a percentage of the full-scale range, with higher accuracy levels providing more precise and reliable measurements. Commonly available accuracy levels range from ±0.25% to ±2.5% of the full-scale range.

While higher accuracy gauges may come at a higher cost, they can pay dividends in critical processes where even small deviations in pressure can have significant consequences.

On the other hand, lower accuracy gauges may be suitable for less critical applications where cost is a driving factor, and minor variations in pressure measurement are acceptable.

Understanding the implications of different accuracy levels and how to choose the right one for your application is crucial to ensure optimal performance, safety, and cost-effectiveness.

Key take-a-ways:

  1. Pressure gauge accuracy is critical for ensuring process safety, product quality, and operational efficiency across various industries and applications.
  2. Accuracy is typically expressed as a percentage of the full-scale range, with common levels ranging from ±0.25% to ±2.5%.
  3. Factors such as temperature fluctuations, vibration, pulsation, and media compatibility can impact a gauge's accuracy in real-world applications.
  4. Selecting the appropriate accuracy level involves weighing factors like process criticality, cost implications, and safety/regulatory requirements against industry guidelines.
  5. Regular calibration and proper maintenance are essential for preserving a pressure gauge's accuracy throughout its service life.
  6. It's important to understand the difference between accuracy and precision, as both qualities contribute to reliable and meaningful pressure measurements in different ways.
  7. Partnering with a reputable outsourced service provider like Precision Fabricating & Cleaning can help ensure optimal gauge cleaning and maintenance, maximizing accuracy and reliability.

What is Pressure Gauge Accuracy?

Accuracy in pressure gauges refers to the gauge's ability to provide a measurement that is as close as possible to the true or actual pressure value. In other words, it is a measure of how well the gauge reading corresponds to the real pressure being measured. Accuracy is a key performance characteristic that determines the reliability and precision of a pressure gauge.

How accuracy is measured and expressed (percentage of full-scale range) Pressure gauge accuracy is typically expressed as a percentage of the full-scale range. For example, a gauge with an accuracy of ±1% of the full-scale range and a range of 0-100 psi would have an accuracy of ±1 psi across the entire scale.

Accuracy is usually measured by comparing the gauge's reading to a known reference standard or calibration device. This process involves applying various pressure points across the gauge's range and recording the deviations from the true pressure value. The maximum deviation observed across the entire range is then used to calculate the gauge's accuracy as a percentage of the full-scale range.

It's important to note that accuracy specifications provided by manufacturers typically represent the maximum expected error under ideal conditions. In real-world applications, factors such as temperature fluctuations, vibration, and media compatibility can further impact the gauge's accuracy.

Factors Affecting Pressure Gauge Accuracy

While the accuracy specifications provided by manufacturers are a good starting point, several factors can influence the actual accuracy of a pressure gauge in real-world applications. Understanding these factors is crucial to selecting the appropriate gauge and ensuring reliable and precise measurements.

Manufacturing tolerances

Even within the same accuracy class, there can be slight variations in the manufacturing tolerances of individual pressure gauges. These tolerances can affect the gauge's sensitivity, linearity, and overall accuracy. High-quality gauges from reputable manufacturers typically have tighter manufacturing tolerances, resulting in better accuracy and consistency.

Temperature effects

Temperature fluctuations can significantly impact the accuracy of pressure gauges, especially those without temperature compensation. As temperature changes, the elasticity and spring rate of the Bourdon tube (the sensing element) can vary, leading to measurement errors. For every 18°F (10°C) shift in temperature from the calibrated value, an additional error of up to ±0.4% of the full-scale range can be introduced.

Vibration and pulsation

Excessive vibration and pulsation in the process can cause the gauge's internal components to oscillate, resulting in fluctuating or inaccurate readings. This is particularly problematic in applications involving pumps, compressors, or other equipment that generates significant vibration or pulsating flow. Appropriate gauge selection, proper installation, and the use of pulsation dampeners can help mitigate these effects.

Media compatibility

The wetted parts of the pressure gauge, such as the Bourdon tube and socket, must be compatible with the process media to prevent corrosion or other forms of degradation. Incompatible materials can lead to gauge failure, inaccuracies, and potentially unsafe conditions. Selecting a gauge with appropriate wetted materials or using diaphragm seals can ensure media compatibility and maintain accuracy over time.

By considering and addressing these factors, users can maximize the accuracy of their pressure gauges and ensure reliable measurements in their specific applications.

Choosing the Right Accuracy Level

Selecting the appropriate accuracy level for a pressure gauge is crucial to ensure reliable and precise measurements while balancing cost considerations. Different industries and applications have varying accuracy requirements, and understanding these guidelines can help users make an informed decision.

Guidelines for different industries and applications

  • Test gauges and standards (0.25% - 0.10%): In applications where precise pressure measurement is critical, such as calibration laboratories, metrology, and scientific research, gauges with extremely high accuracies of 0.25% or better (up to 0.10%) are typically used. These gauges are often used as reference standards or for calibrating other instruments.
  • Critical processes (0.5%): In industries like pharmaceuticals, aerospace, and nuclear power, where process accuracy and safety are paramount, gauges with an accuracy of 0.5% or better are commonly employed. Even small deviations in pressure can have significant consequences in these critical applications.
  • General industrial processes (1.0%): For many industrial applications, such as chemical processing, oil and gas, and manufacturing, gauges with an accuracy of 1.0% are widely used. This level of accuracy provides a good balance between reliability and cost-effectiveness for most general-purpose applications.
  • Less critical commercial uses (2.0%): In applications where pressure measurement is less critical, such as HVAC systems, plumbing, and general commercial applications, gauges with an accuracy of 2.0% or lower may be suitable. These gauges are typically more cost-effective but may not provide the same level of precision as higher-accuracy models.

Considerations for accuracy requirements

When selecting the appropriate accuracy level, several factors should be taken into account:

  • Process criticality: The criticality of the process and the potential consequences of inaccurate pressure measurements should be the primary consideration. Processes with higher risks or stricter tolerances may require higher accuracy gauges.
  • Cost implications: Higher accuracy gauges generally come at a higher price point. Users must balance the need for precision with budgetary constraints, especially in applications where lower accuracies may be acceptable.
  • Safety and regulatory requirements: Certain industries or applications may have specific safety standards or regulatory requirements that mandate minimum accuracy levels for pressure gauges. Compliance with these guidelines is essential to ensure safe operations and avoid potential legal or regulatory issues.

By carefully evaluating these factors and considering industry guidelines, users can select the appropriate accuracy level that meets their specific needs while optimizing performance, safety, and cost-effectiveness.

Accuracy versus Precision

When discussing pressure gauge performance, it's important to understand the distinction between accuracy and precision, as both play crucial roles in ensuring reliable and meaningful measurements.

Differentiating accuracy and precision

Accuracy refers to how close a measurement is to the true or actual value. It represents the degree of correctness or conformance to a known reference standard. A pressure gauge with high accuracy will provide readings that are very close to the real pressure value being measured.

Precision, on the other hand, describes the consistency or repeatability of measurements. A precise gauge will produce similar readings when measuring the same pressure multiple times, even if those readings are not necessarily accurate (i.e., close to the true value).

In simpler terms, accuracy indicates how close a measurement is to the bull's-eye, while precision refers to how tightly grouped the measurements are around a central point, regardless of whether that point is the actual bull's-eye.

Importance of both in pressure measurement

Both accuracy and precision are essential qualities for pressure gauges, as they contribute to the reliability and usefulness of the measurements in different ways.

High accuracy is crucial in applications where the absolute pressure value is critical, such as in precision manufacturing, process control, or calibration. Inaccurate measurements can lead to product defects, process inefficiencies, or safety issues.

Precision, on the other hand, is particularly important when monitoring pressure trends or detecting small changes over time. Even if a gauge is not highly accurate, consistent and repeatable measurements can provide valuable insights into process behavior or equipment performance.

In many applications, both accuracy and precision are desirable characteristics. A pressure gauge that combines high accuracy with good precision will provide reliable and trustworthy measurements, enabling users to make informed decisions and take appropriate actions based on the data.

Manufacturers strive to optimize both accuracy and precision in their pressure gauge designs, using advanced manufacturing techniques, high-quality materials, and rigorous calibration processes. Regular maintenance and calibration are also crucial to maintaining the desired levels of accuracy and precision throughout the gauge's service life.

Calibration and Maintenance

Regular calibration and proper maintenance are essential practices to ensure the continued accuracy and reliability of pressure gauges throughout their service life.

Importance of regular calibration

Over time, various factors such as wear, drift, and environmental influences can cause pressure gauges to deviate from their initial accuracy specifications. Regular calibration is the process of comparing the gauge's readings against a known reference standard and making necessary adjustments or repairs to restore its accuracy.

Calibration is crucial for several reasons:

  1. It verifies the gauge's performance and identifies any deviations from the specified accuracy.
  2. It ensures compliance with industry standards, regulations, and quality control requirements.
  3. It helps detect and correct potential issues before they lead to more significant problems or safety concerns.
  4. It prolongs the gauge's useful life by identifying and addressing issues early.

Most manufacturers recommend calibrating pressure gauges annually or at specific intervals based on the application and usage conditions.

Calibration procedures and best practices

Calibration procedures typically involve the following steps:

  1. Comparing the gauge's readings against a calibrated reference standard (e.g., a dead weight tester or a precision pressure controller) across multiple pressure points within the gauge's range.
  2. Recording the deviations between the gauge's readings and the reference standard.
  3. Adjusting the gauge or applying correction factors if the deviations exceed the specified accuracy tolerances.
  4. Issuing a calibration certificate documenting the results and any adjustments made.

Best practices for calibration include using accredited calibration laboratories, following manufacturer's recommendations, and adhering to industry standards.

Effects of improper maintenance on accuracy

Improper maintenance can have significant impacts on the accuracy and reliability of pressure gauges. Some common issues that can arise include:

  1. Corrosion or degradation of wetted parts due to incompatible media or lack of proper cleaning and storage.
  2. Mechanical damage or misalignment of internal components due to rough handling or excessive vibration.
  3. Leaks or loss of fill fluid (in liquid-filled gauges), leading to potential errors or gauge failure.
  4. Buildup of contaminants or debris, which can affect the gauge's movement or cause sticking.

Neglecting regular maintenance can lead to premature gauge failure, inaccurate readings, and potential safety risks. Following the manufacturer's recommended maintenance procedures, such as cleaning, inspection, and proper storage, can help extend the gauge's service life and ensure continued accuracy.

By prioritizing regular calibration and proper maintenance, users can maximize the performance and reliability of their pressure gauges, ensuring accurate and trustworthy measurements throughout the gauge's lifespan.

In conclusion

Selecting the appropriate accuracy level for pressure gauges is crucial for ensuring reliable and precise measurements in various applications. Throughout this article, we have explored the importance of pressure gauge accuracy, the factors that can influence it, and the guidelines for choosing the right accuracy level based on industry standards and application requirements.

When selecting the appropriate accuracy level for a pressure gauge, it is crucial to consider the criticality of the application, potential consequences of inaccurate measurements, cost implications, and any relevant safety or regulatory requirements. While higher accuracy gauges may come at a premium, they can be invaluable in critical processes where even small deviations can have significant impacts.

Conversely, in less critical applications, lower accuracy gauges may provide a cost-effective solution while still meeting the necessary measurement requirements. Striking the right balance between accuracy and cost is key to optimizing performance and efficiency.

Precision Fabricating & Cleaning as the best outsourced gauge cleaning partner

Maintaining the accuracy and reliability of pressure gauges can be a challenging task, especially in demanding industrial environments. That's where partnering with a reputable outsourced service provider like Precision Fabricating & Cleaning can be invaluable.

With their expertise in gauge cleaning and maintenance, Precision Fabricating & Cleaning can help ensure that your pressure gauges operate at optimal levels throughout their service life. Their meticulous cleaning processes and adherence to industry standards guarantee that your gauges are free from contaminants, corrosion, and other factors that can compromise accuracy.

By outsourcing your gauge cleaning and maintenance to Precision Fabricating & Cleaning, you can focus on your core operations while benefiting from the peace of mind that comes with having accurate and reliable pressure measurement instruments.
