Cryogenic Testing Fundamentals: From Component Testing to Safety Protocols

Cryogenic Testing represents one of the most demanding disciplines in industrial validation, operating in the extreme realm from -238°F down to an astounding -460°F (absolute zero). In this unforgiving environment, even the air we breathe transforms into liquid, and common materials exhibit extraordinary behaviors, challenging our traditional understanding of material properties.

From aerospace components to industrial gas systems, cryogenic testing plays a crucial role in ensuring the safety and reliability of critical equipment and components. This specialized testing verifies that materials can withstand extreme cold while maintaining their structural integrity and functional properties.

In this comprehensive guide, we'll explore the fundamentals of cryogenic testing, including detailed testing procedures, essential safety protocols, and real-world applications. Whether you're a seasoned engineer or new to the field, understanding these principles is crucial for anyone working with ultra-low temperature systems and components.

Key Takeaways

1. Temperature Extremes Matter. Cryogenic testing operates between -238°F to -460°F, with different fluids like oxygen, nitrogen, hydrogen, and helium serving specific testing needs.
2. Safety is Non-Negotiable. Proper PPE, removal of metal items, and constant monitoring of asphyxiation and over-pressurization risks are essential for personnel safety.
3. Testing Protocols are Standardized. Standards like 54000-GT08 and 54000-GT12 dictate precise testing sequences that must be followed exactly to ensure valid results.
4. Material Compatibility is Critical. Only specially approved materials should be used in cryogenic applications, as common materials can become dangerously brittle at ultra-low temperatures.
5. Environmental Controls are Essential. Proper ventilation, oxygen level monitoring, and moisture management are crucial for both safety and test validity.
6. Specialized Equipment is Required. Cryogenic testing demands purpose-built equipment from storage vessels to monitoring devices capable of functioning at extreme temperatures.
7. Expert Partnership Matters. PFC's specialized facilities, trained technicians, and state-of-the-art control systems ensure safe and reliable cryogenic testing outcomes.

Understanding Cryogenic Temperatures

The world of cryogenic temperatures exists in a range that's difficult for most to comprehend, spanning from -238°F down to absolute zero at -460°F.

At these extreme temperatures, gases transform into liquids, and materials undergo dramatic changes in their physical properties. Understanding this temperature range is essential for proper testing and application.

The Cryogenic Testing Range

The cryogenic spectrum is defined by the temperatures at which different gases liquefy, creating a natural hierarchy of cryogenic fluids.

• Oxygen liquefies at -297°F, marking the upper end of the common cryogenic range.
• Nitrogen follows, transforming into its liquid state at -320°F, which makes it the most widely used cryogenic fluid for industrial testing due to its cost-effectiveness and relatively safe handling characteristics.
• Moving down the temperature scale, hydrogen liquefies at a much colder -423°F
• While helium doesn't become liquid until reaching -452°F.
• This progression continues until reaching absolute zero at -460°F, the theoretical point where molecular motion ceases.

Real-world Applications

The aerospace industry stands as one of the primary beneficiaries of cryogenic testing. NASA's experience with the Space Shuttle program demonstrates the critical nature of understanding how materials and components behave at these temperatures. For instance, the external fuel tanks contained liquid oxygen and liquid hydrogen, requiring extensive testing of materials, welds, and components to ensure safety and performance.

In industrial testing, cryogenic temperatures are used to validate the integrity of various components through cold shock testing. Valves, pipes, and control systems undergo rigorous testing cycles to verify their performance and safety at these extreme temperatures. This testing is particularly crucial for systems that must maintain their operational capabilities in extreme environments or handle cryogenic fluids during normal operation.

Component Testing Fundamentals

Cryogenic component testing follows rigorous protocols designed to validate the integrity and functionality of equipment under extreme cold conditions. These procedures are carefully structured to ensure comprehensive evaluation while maintaining safety throughout the testing process.

Internal Cold Shock Testing

The internal cold shock process begins by filling the test item with liquid nitrogen (LN2) until it reaches -320°F, verified by LN2 presence at the item's outlet. This critical test typically runs for a one-hour duration, allowing the component to fully experience cryogenic conditions. After completion, the LN2 is carefully drained, and the item gradually returns to ambient temperature before undergoing detailed visual inspection for any signs of damage or degradation.

External Cold Shock Testing

External testing utilizes a specialized cold sock test fixture, where LN2 is introduced at the low end of the assembly. The process continues until achieving a steady stream of LN2 from the high end, indicating complete temperature stabilization. The system maintains this flow for a one-hour cold-soak period, ensuring thorough exposure to cryogenic conditions.

Specific Component Testing Protocols

Two primary testing specifications govern cryogenic component validation:

Standard 54000-GT08 for cylinder-operated cryogenic valves follows a precise sequence:

1. Proof testing
2. Cycling tests
3. External leak testing of the valve assembly
4. External leak testing of the operator
5. Internal leak testing of both assembly and operator
6. Cold testing with minimal helium flow during the soak period

Standard 54000-GT12 for cryogenic check valves requires:

1. Initial proof testing
2. Cycling validation
3. External leak verification
4. Internal leak testing at ambient temperature
5. Cold testing with minimal helium flow
6. Final external leak testing at ambient conditions

These standardized procedures ensure consistent and reliable validation of components intended for cryogenic service, maintaining the highest safety and performance standards across all testing phases.

Cryogenic Testing Equipment and Infrastructure

The successful execution of cryogenic testing requires specialized equipment designed to handle extreme cold temperatures safely and efficiently. From storage solutions to testing apparatus, each component plays a vital role in maintaining test integrity and personnel safety.

Storage and Handling Equipment

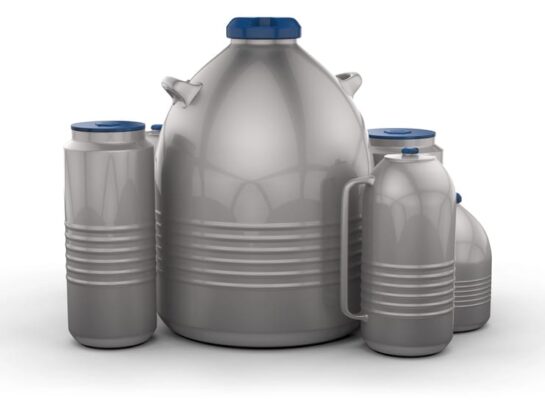

At the heart of cryogenic storage are Dewar flasks, non-pressurized, vacuum-jacketed vessels similar to large-scale thermos bottles. These specialized containers feature loose-fitting caps or plugs that serve dual purposes: preventing air and moisture contamination while allowing excess pressure to safely vent. It's crucial to use only manufacturer-supplied stoppers or plugs to maintain system integrity.

Traditional storage tanks and transfer systems require sophisticated insulation and pressure management systems. These systems are engineered to handle the significant volume expansion that occurs during liquid-to-gas phase transitions – a critical consideration given that substances like liquid nitrogen can expand by a factor of approximately 700:1 when transitioning from liquid to gas state.

Testing Equipment

Test fixtures must be carefully designed to withstand rapid temperature changes and maintain structural integrity under cryogenic conditions. Cold sock test fixtures, commonly used in external cold shock testing, require precise engineering to ensure uniform cooling and proper venting of boil-off gases.

Monitoring devices play a crucial role in maintaining test parameters and safety:

• Temperature sensors capable of accurate readings at extreme cold
• Pressure monitoring systems to prevent over-pressurization
• Gas detection systems to monitor oxygen levels in the testing area
• Flow meters to regulate cryogenic fluid delivery

Safety equipment forms an integral part of the testing infrastructure:

• Emergency shutdown systems
• Pressure relief devices
• Ventilation systems to manage gas accumulation
• Emergency oxygen monitoring systems
• Spill containment systems
• Eye wash stations and safety showers strategically positioned in testing areas

All equipment must be regularly inspected, maintained, and certified to ensure reliable operation under these demanding conditions. This comprehensive infrastructure creates a foundation for safe and effective cryogenic testing operations.

Critical Safety Protocols During Cryogenic Testing

Working with cryogenic temperatures demands strict adherence to safety protocols to protect both personnel and equipment. These protocols address multiple hazards unique to ultra-low temperature environments and must be followed without exception.

Personal Protective Equipment (PPE)

Proper PPE forms the first line of defense against cryogenic hazards. Safety goggles must always be worn with a face shield positioned over them, providing dual protection against splashes and vapor exposure. Personnel must wear impervious aprons or coats that protect against liquid contact and splashes. Gloves require special consideration – they must be impervious but loose enough to be quickly removed if exposed to cryogenic liquids. Fully covering, closed-toe shoes are mandatory in all cryogenic work areas.

An often overlooked but critical safety requirement is the removal of watches and metal jewelry before handling cryogenic materials. These items can rapidly freeze to the skin if exposed to cryogenic liquids or their boil-off gases, causing severe tissue damage.

Primary Safety Concerns

1. Over-pressurization presents a significant risk in cryogenic systems. Without adequate venting, the extreme expansion ratio of cryogenic liquids can lead to catastrophic failures known as Boiling Liquid Expanding Vapour Explosions (BLEVE). Proper pressure-relief devices and venting systems are essential safeguards.
2. Asphyxiation hazards exist because vaporizing cryogenic liquids can rapidly displace breathable air, especially in confined spaces. One liter of liquid nitrogen can expand to 696 liters of gas at room temperature, potentially creating oxygen-deficient atmospheres without warning.
3. Contact hazards present immediate dangers to personnel. Cryogenic exposure can cause instant, severe frostbite, with vapor jets potentially freezing skin or eyes faster than liquid contact. Tissue damage can be extensive and permanent, particularly with eye exposure. The extreme cold can also cause materials to become brittle and shatter, creating additional hazards.

Special Considerations

The extreme nature of cryogenic testing introduces unique challenges that require careful attention to both material selection and environmental conditions. Understanding these special considerations is crucial for maintaining safety and test integrity.

Material Compatibility

Not all materials can withstand cryogenic temperatures safely. At these extreme cold temperatures, many common materials undergo significant property changes. Rubber, plastic, and carbon steel can become dangerously brittle and shatter unexpectedly when exposed to cryogenic temperatures. Only materials specifically approved for cryogenic use should be employed in testing operations.

When transferring cryogenic fluids through metal pipes, thermal cycling can lead to material fatigue. Components must be designed to handle both the extreme cold and the stress of repeated thermal cycles. This is particularly critical for seals, gaskets, and other connection points that must maintain their integrity across the full temperature range.

Environmental Factors

Oxygen enrichment poses a significant but often overlooked hazard in cryogenic testing. When nitrogen is transferred through uninsulated metal pipes, surrounding air can condense on the cold surfaces. Because nitrogen has a lower boiling point than oxygen, it evaporates first, potentially leaving behind an oxygen-enriched condensate. This enriched oxygen environment can dramatically increase the flammability of nearby materials – even those typically considered non-combustible.

Proper ventilation is essential not only for personnel safety but also for system performance. Areas where cryogenic testing occurs must have adequate air exchange to prevent the accumulation of vaporized gases and maintain safe oxygen levels. Ventilation systems should be designed to handle the potential volume of gas that could be released during normal operations or in emergency situations.

Condensation management becomes crucial as atmospheric moisture can freeze on cold surfaces, creating additional hazards and potentially affecting test results. Proper insulation and moisture barriers must be incorporated into the testing setup to minimize these effects while maintaining test validity.

Conclusion

In the demanding world of cryogenic testing, where temperatures plunge below -238°F and materials are pushed to their limits, understanding and implementing proper procedures isn't just about meeting specifications—it's about ensuring safety and reliability in critical applications.

Throughout this guide, we've explored the fundamental aspects of cryogenic testing, from the basic principles of ultra-low temperature behavior to the complex requirements of component testing. We've examined the crucial role of proper equipment, the necessity of comprehensive safety protocols, and the special considerations that make this field uniquely challenging.

Precision Fabricating & Cleaning (PFC) stands at the forefront of cryogenic testing expertise, offering specialized services that meet these exacting demands. Our dedicated testing facility, equipped with a state-of-the-art control room and comprehensive safety systems, provides the controlled environment necessary for precise and reliable testing outcomes.

Contact PFC to discuss your cryogenic testing needs today.
