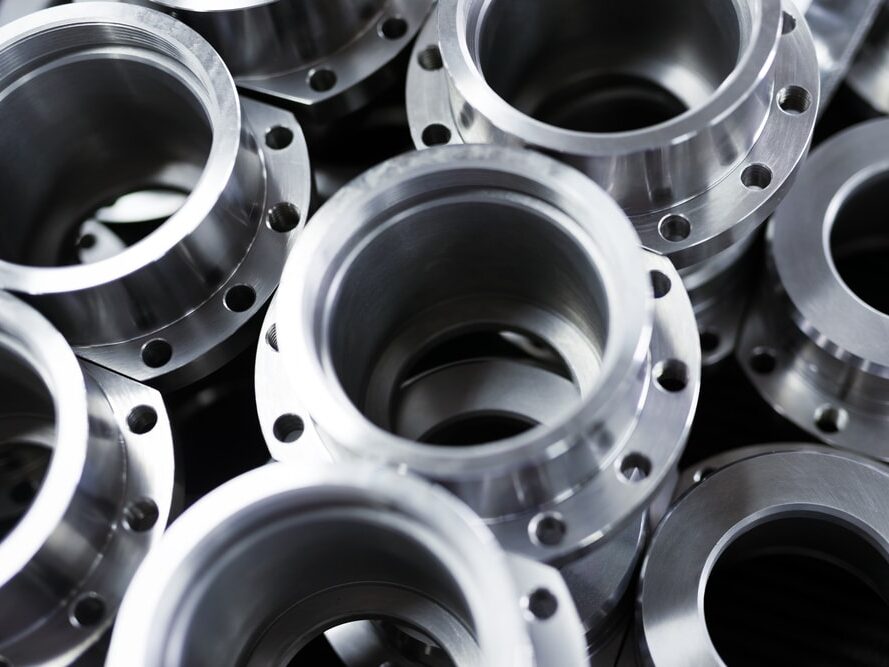

stainless steel parts passivation

The Ultimate Guide to Stainless Steel Passivation: Types, Strength Verification, and Proper Handling

Stainless steel is a popular material for a wide range of applications, from medical devices to aerospace components. However, even stainless steel can rust and corrode if it's not properly maintained. That's where passivation comes in, which is the process of treating stainless steel with an acid solution to remove free iron and other contaminants from the surface. Passivation creates a thin layer on the surface of stainless steel that helps protect it against corrosion.

We'll explore the different types of passivation processes. There are several industry standards for passivation, including nitric acid-based baths and citric acid-based baths.

Each method has its own pros and cons, and choosing the right one depends on the specific application. We'll discuss each method in detail, comparing and contrasting them so that you can determine which one is best for your needs. Additionally, we'll explore some alternative methods used in certain industries that might be worth considering.

Key takeaways:

  1. Stainless steel requires proper maintenance to prevent rust and corrosion. Passivation is a process that treats stainless steel with an acid solution to remove contaminants and create a protective layer against corrosion.
  2. Industry standards such as ASTM A380, ASTM A967, and AMS 2700 provide guidelines and procedures for passivation processes. Adhering to these standards ensures consistency and effectiveness, resulting in high-quality, corrosion-resistant stainless steel components.
  3. Nitric acid-based and citric acid-based passivation are the two main types discussed. Nitric acid-based passivation is effective, but corrosive and more expensive. Citric acid-based passivation is safer, environmentally friendly, and cost-effective, although it may be less effective at removing contaminants.
  4. Phosphoric acid, although useful in other industrial processes, is not recommended for passivation. It does not strengthen the passive film on stainless steel surfaces, is less effective in producing corrosion resistance, and does not comply with industry standards.
  5. Verifying the strength of passivation solutions is crucial. The titration method is commonly used for this purpose. Proper handling procedures include wearing gloves, avoiding direct contact with passivated surfaces, using non-abrasive materials, and ensuring proper storage and inspection of passivated parts to maintain their quality and corrosion resistance.

Passivation processes are controlled by industry standards

The most prevalent industry standards for include ASTM A380, ASTM A967, and AMS 2700 and can be decided upon by either the customer or vendor for us as required. Let’s delve deeper into each of these established standards.

  • ASTM A380 is a broadly recognized industry standard for descaling, cleaning, and passivating stainless steel parts. This standard outlines specific procedures and requirements for each step of the passivation process, including pre-cleaning, passivating, rinsing, and drying. The standard also provides guidance on the appropriate concentration of nitric or citric acid solutions and the optimal temperature and time for each step.

  • ASTM A967 is widely used standard for stainless steel parts and outlines the process using either nitric or citric acid solutions, as well as the appropriate concentrations, temperatures, and times for each step. This standard places particular emphasis on the safety precautions that should be taken when handling these chemicals and the importance of proper disposal.

  • AMS 2700 is a standard that was developed by the aerospace industry to ensure the quality and consistency of passivation processes. This standard specifies the requirements for surface preparation, passivation, and testing of stainless steel parts used in aerospace applications. It also includes guidelines on the appropriate methods for testing the effectiveness of the process.

Industry standards are critical for ensuring that processes are conducted consistently and effectively. These standards provide a framework for manufacturing facilities to follow, allowing them to produce high-quality, corrosion-resistant stainless steel components. By adhering to these standards, manufacturers can ensure that their products meet the necessary specifications and requirements for use in various industries.

The Different Types of Passivation Processes

Let’s examine the different types of passivation processes, including nitric acid-based baths and citric acid-based baths, and compare their pros and cons.

  • Nitric acid-based passivation is the most common type of passivation used in industrial applications. Nitric acid solutions are typically used to remove iron from the surface of stainless steel parts and components. The process involves immersing the parts in a heated nitric acid solution for a predetermined amount of time. The solution strength and temperature are carefully controlled to ensure that the correct amount of iron is removed without damaging the underlying surface.

One of the advantages of nitric acid-based passivation is that it is highly effective at removing iron and other contaminants from the surface of stainless steel. However, there are some drawbacks to this method as well. For one, nitric acid is highly corrosive, which means that it can damage other materials if not handled properly.

Additionally, nitric acid-based passivation can be expensive and time-consuming.

  • Citric acid-based passivation is becoming increasingly popular as an alternative to nitric acid-based passivation. Citric acid is a safer and more environmentally friendly acid that is able to remove iron from the surface of stainless steel without causing damage to the underlying surface. Citric acid-based passivation is also less expensive than nitric acid-based passivation, making it a more cost-effective solution for many applications.

However, one of the drawbacks of citric acid-based passivation is that it is less effective at removing contaminants from the surface of stainless steel compared to nitric acid-based passivation.

Why Phosphoric Acid is Not Recommended for Passivation

Phosphoric acid is a common acid used in various industrial processes and is known for its ability to remove rust and sulphide inclusions from stainless steel surfaces. However, it is not recommended as a passivation solution for several reasons:

  1. Phosphoric acid is not oxidizing, meaning it does not strengthen the passive film on the surface of stainless steel. The passive film is an essential layer that forms naturally on stainless steel surfaces and provides resistance to corrosion.
  2. Compared to other passivation solutions, such as nitric acid or citric acid, phosphoric acid is less effective and does not produce the same level of corrosion resistance.
  3. Passivation with phosphoric acid is not an acceptable method according to industry standards such as ASTM A380, ASTM A967, and AMS 2700. These standards provide guidelines for and specify the acceptable methods and solutions.

How to Verify Passivation Solution Strengths

One of the critical factors in the process is ensuring that the acid solution used to remove free iron is at the correct strength. To quantify the effectiveness of the solution, acid concentration is usually expressed as a percentage, with well-defined ranges for each acid type that conform to industry standards.

A widely employed laboratory technique for assessing the concentration of a solution is known as titration. In the realm of passivation, titration plays a crucial role in gauging the potency of the acid solution utilized to eliminate free iron from the exterior of stainless steel parts and components.

Titration functions by introducing a solution of a predetermined potency (known as a titrant) to a set volume of the solution until the reaction reaches an equilibrium point, typically denoted by a visible change in color. The quantity of titrant necessary to achieve this neutralization point is then employed to calculate the strength of the passivation solution.

Proper Handling Procedures for Passivated Parts

Once a part has been passivated, proper handling procedures are essential to prevent damage to the surface layer that protects against corrosion. Let’s take a closer look at the proper handling procedures for passivated parts.

Handling Precautions When handling passivated parts, it's important to follow certain precautions to avoid damaging the surface layer. For example:

  • Wear gloves to prevent the transfer of oils or contaminants from your hands to the parts.
  • Avoid touching the passivated surfaces directly with bare hands or fingers.
  • Do not use metal tools or equipment that could scratch or damage the surface of the parts.
  • Use non-abrasive materials such as plastic or rubber when handling the parts to prevent scratches or other damage.

Proper storage is critical for maintaining the quality of passivated parts. The parts should be stored in a clean and dry environment, away from sources of moisture or contamination. Ideally, they should be stored in airtight containers to prevent exposure to air and humidity. If the parts need to be transported or shipped, they should be packaged carefully to prevent damage during transit.

Regular inspection of passivated parts is essential to ensure that the protective layer is intact and that there are no signs of corrosion or damage. Parts should be inspected for signs of rust, discoloration, or other defects that could indicate a problem with the passivation layer.

In conclusion

Passivation is a crucial process for ensuring the long-term corrosion resistance of stainless steel components. There are various types and methods available, and it's essential to choose the right one depending on the application requirements.

Strength verification is also necessary to ensure the passivation process was successful. Additionally, proper handling procedures must be followed to prevent damage to the surface layer that protects against corrosion. Finally, industry standards like ASTM A380, ASTM A967, and AMS 2700 provide guidance on the process to ensure consistency and effectiveness.

By following these guidelines, industrial companies can maintain high-quality, corrosion-resistant stainless steel components that meet the needs of their customers while upholding the highest standards of quality and safety.
