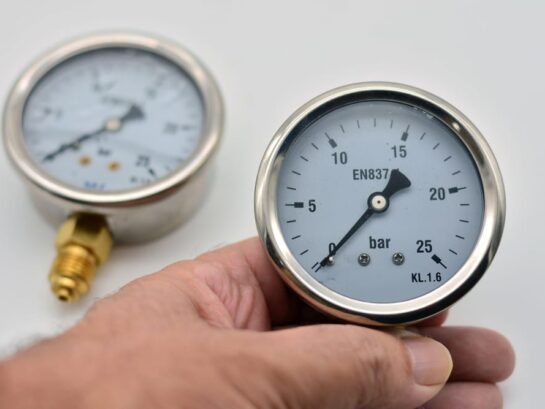

The Science of Pressure Gauge Cleaning: Specialized Methods for Different Gauge Types

Pressure gauge cleaning represents a critical maintenance procedure across industrial systems, where these instruments serve as the eyes and ears of operations. Effective pressure gauge cleaning protocols ensure these precision devices continue to provide accurate readings that inform operational decisions across aerospace, pharmaceutical, oil and gas, and manufacturing sectors.

These instruments measure the condition of fluids within systems, often operating in harsh environments where contamination can quickly compromise their functionality.

Regular cleaning isn't merely maintenance—it's essential for ensuring accurate readings, preventing system failures, and avoiding potentially catastrophic safety incidents. When gauges become contaminated with dirt, oil, or process fluids, they not only lose accuracy but may fail entirely, putting both equipment and personnel at risk.

This article explores the science behind pressure gauge cleaning, examining specialized methods for different gauge types including Bourdon tube gauges, diaphragm/bellows designs, and digital pressure instruments.

By understanding the unique construction and vulnerabilities of each gauge type, maintenance professionals can implement the most effective cleaning protocols for their specific applications.

Key Takeaways

1. Pressure gauge cleaning is essential for maintaining accuracy, preventing system failures, and ensuring safety across industrial applications.
2. Different gauge types (Bourdon tube, diaphragm/bellows, and digital) have unique vulnerabilities requiring specialized cleaning approaches.
3. Three primary cleaning methods exist: flow-through cleaning for gauges with bleed ports, vacuum chamber process for dead-end gauges, and fill-and-drain for gauges with complex geometries.
4. Industry-specific requirements significantly impact cleaning protocols, with aerospace, pharmaceutical, oil and gas, and chemical processing each having unique standards.
5. Quality verification through contamination testing provides objective evidence of cleaning effectiveness and should be documented in a comprehensive maintenance record.
6. Regular preventative maintenance scheduling helps prevent gauge failures and extends instrument life.
7. For many organizations, partnering with specialized service providers like PFC offers advantages in expertise, equipment, and consistent documentation.

Understanding Pressure Gauge Fundamentals

A pressure gauge is an instrument designed to measure the condition of a fluid (liquid or gas) by determining the force it exerts on a unit area. These critical devices translate fluid pressure into readable measurements that allow operators to monitor system performance, ensure safety parameters, and maintain optimal operational conditions. In industrial applications, pressure gauges provide vital information that can prevent equipment failure, process inefficiencies, and potentially hazardous situations.

Pressure measurements are expressed in several units depending on regional standards and specific industry applications. The most common unit in the United States is pounds per square inch (PSI), while the metric system typically uses Bar or Pascals (Pa). Other frequently encountered units include inches of water column (used for low-pressure applications), Torr (common in vacuum applications), and inches of mercury (inHg). Understanding these conversions is essential—for reference, 1 PSI equals approximately 0.069 Bar, 6,895 Pascals, 27.7 inches of water column, or 2.04 inHg.

Pressure gauges operate with different reference points, creating three distinct measurement types. Absolute pressure gauges (often labeled PSIA) measure pressure referenced against a perfect vacuum (zero pressure), making them ideal for applications requiring true pressure values regardless of atmospheric conditions.

Gauge pressure (PSIG) references measurements against ambient atmospheric pressure, with standard atmospheric pressure reading as 0 PSIG. This is the most common type for industrial applications where relative pressure is sufficient. Differential pressure gauges measure the pressure difference between two points in a system rather than against a fixed reference, making them invaluable for monitoring filters, flow rates, and level measurements.

The reference type selection significantly impacts gauge cleaning procedures, as each design features different internal components and access points that require specialized cleaning approaches to maintain accuracy and reliability.

Types of Pressure Gauges and Their Unique Characteristics

Understanding the distinct designs and mechanical principles of different gauge types is essential for developing effective pressure gauge cleaning protocols. Each gauge construction presents specific vulnerabilities to contamination and requires tailored maintenance approaches.

Let's examine the three primary pressure gauge technologies used in industrial applications and their unique cleaning considerations.

Bourdon Tube Gauges

The Bourdon tube gauge, invented circa 1850, remains one of the most widely used pressure measurement instruments across industries. Its design centers around a curved, flattened metal tube sealed at one end and connected to the process fluid at the other. As pressure increases, the tube attempts to straighten, converting this mechanical movement into a pointer rotation via a linkage mechanism. This elegant mechanical solution requires no external power and functions reliably in harsh environments.

Common applications include steam systems, compressors, hydraulic equipment, and general industrial processes where robust performance is required. These gauges excel in moderate to high-pressure applications, typically ranging from 15 PSI to over 10,000 PSI.

Contamination vulnerabilities primarily exist at the pressure inlet port, within the curved tube itself, and in the mechanical linkage assembly. Particulates and viscous substances can accumulate in the tube's interior, restricting movement and causing inaccurate readings. The tube's curved design creates natural collection points for debris, making thorough pressure gauge cleaning particularly challenging for dead-end designs without bleed ports.

Diaphragm/Bellows Gauges

Diaphragm and bellows gauges utilize flexible membranes that deform under pressure. This design offers superior sensitivity to small pressure changes, making them ideal for low-pressure applications. The diaphragm, typically made of thin metal or elastomeric materials, separates the process media from the gauge mechanism, offering protection against corrosive substances.

These gauges excel in measuring vacuum conditions, pressures below atmospheric levels, and in applications requiring isolation from process media. They're commonly used in environmental monitoring, HVAC systems, and sensitive laboratory equipment.

Pressure gauge cleaning considerations must account for the delicate nature of the diaphragm or bellows. Aggressive cleaning methods can damage the thin, flexible components, while contamination trapped in the corrugations of bellows can be difficult to remove. Many designs feature special ports or flushing connections specifically for pressure gauge cleaning purposes.

Digital Pressure Gauges

Digital pressure gauges incorporate electronic pressure sensors (typically strain gauges or piezoelectric sensors) with microprocessor-based display systems. These modern instruments offer advantages including higher accuracy, programmable features, and data logging capabilities.

Internally, these gauges contain sensitive electronic components including circuit boards, displays, and sensor elements. This complexity creates unique contamination risks—not only can process media affect accuracy, but moisture ingress can damage electronics and cause complete failure.

Cleaning digital gauges requires special attention to prevent liquid infiltration into electronic compartments. Many feature modular designs where the sensing element can be isolated for cleaning while protecting electronic components.

Specialized Pressure Gauge Cleaning Methods

Professional pressure gauge cleaning requires methodical approaches tailored to specific gauge designs. The three primary cleaning methods each address particular contamination challenges and gauge configurations.

Selecting the appropriate cleaning technique ensures optimal performance restoration while preventing damage to sensitive components.

Flow-Through Cleaning Method

The flow-through cleaning method is the preferred approach when working with Bourdon tube gauges that feature bleed ports. This technique allows solvent to flow directly through the gauge's sensing element, effectively removing contaminants from the entire fluid path.

• The process begins by removing the small Allen set screw or acorn nut from the end of the Bourdon tube, creating an exit path for cleaning solvent.
• Technicians then introduce approved test solvent through the gauge's inlet port, allowing it to flow through the entire Bourdon tube and exit through the opened bleed port.
• For effective pressure gauge cleaning, a minimum of 100ml of solvent should be collected, which ensures sufficient flushing of internal passages.
• The collected solvent can then be analyzed for particulate count and non-volatile residue (NVR) to verify cleaning effectiveness.

This method provides superior cleaning results because it creates a continuous flow path that dislodges and removes stubborn contaminants. However, it's only applicable to gauges designed with bleed ports, limiting its use to specific models like those from Heise.

Vacuum Chamber Process for Dead-End Gauges

For dead-end Bourdon tube gauges without bleed ports, pressure gauge cleaning requires the vacuum chamber process. This method uses negative pressure to draw solvent into and out of the gauge's internal cavities.

• The equipment setup includes a vacuum chamber with a vent to atmosphere, a vacuum source, and appropriate control valves.
• The gauge is placed in the chamber with its inlet port immersed in a beaker containing approved test solvent.
• When vacuum is applied, atmospheric pressure pushes solvent into the gauge's internal passages.
• Upon venting the chamber, the solvent flows back into the beaker, bringing contaminants with it.

Effective cleaning using this method requires repeating the evacuation and venting cycle a minimum of ten times to ensure thorough contaminant removal.

This technique works well for instruments where traditional flow-through cleaning isn't possible, though it may be less effective for removing tenacious deposits.

Fill and Drain Process

The fill and drain process provides another option for pressure gauge cleaning, particularly for digital gauges and those with complex internal geometries. This method involves introducing cleaning solvent directly into the gauge's pressure port using a syringe or dropper.

• Implementation begins with visual inspection of all accessible surfaces for visible contamination.
• The gauge is then filled with approved solvent and allowed to soak for a minimum of 15 minutes, enabling the solvent to dissolve oils, greases, and loosen particulates.
• After soaking, the gauge is inverted to drain the solvent into a collection container.
• For thorough pressure gauge cleaning, this process should be repeated until the drained solvent shows no evidence of contamination.

The effectiveness of this method depends heavily on proper solvent selection based on the contaminants present and gauge materials. It provides a simple approach that requires minimal specialized equipment but may not clean as thoroughly as other methods.

Cleaning Considerations for Different Industries

Pressure gauge cleaning requirements vary significantly across industries, with each sector imposing unique standards based on operational risks and regulatory frameworks.

• Aerospace and defense applications: cleaning must meet exceptionally stringent specifications with extremely low particulate counts and non-volatile residue levels.
• Medical and pharmaceutical industries: demand pressure gauge cleaning protocols that eliminate both particulate and biological contamination.
• Oil and gas operations: typically follow industry-specific standards focusing on preventing corrosion and material degradation.
• Chemical processing facilities: require cleaning that considers chemical compatibility with process media. Particular attention must be paid to removing reactive residues that could catalyze unwanted reactions or contaminate batch processes.

Selecting the appropriate pressure gauge cleaning protocols for your industry isn't just about meeting requirements—it's about ensuring safety, accuracy, and operational reliability.

Facilities that develop comprehensive, industry-specific cleaning procedures typically experience fewer gauge failures and more consistent measurement performance.

Working with cleaning specialists familiar with your industry's particular challenges can significantly improve outcomes and extend gauge service life.

Best Practices and Quality Verification

Establishing rigorous quality control measures for pressure gauge cleaning ensures consistent results and verifiable outcomes. Solvent selection represents a critical first step in this process—the ideal cleaning agent must effectively dissolve anticipated contaminants while remaining compatible with gauge materials.

After cleaning, contamination testing methods provide objective verification of cleanliness levels. Particulate analysis using microscopic examination or automated particle counters can quantify remaining contaminants, while gravimetric testing measures non-volatile residue levels.

Documentation forms the backbone of quality verification, with comprehensive records detailing cleaning procedures, solvent batches, technician information, and test results. Many organizations implement formal certification processes that verify gauge cleaning effectiveness before returning instruments to service.

Preventative maintenance scheduling should align pressure gauge cleaning frequency with operational conditions. High-contamination environments may require quarterly cleaning, while cleaner applications might extend to annual service.

Establishing regular inspection points helps identify gauges requiring immediate attention due to visible contamination or performance issues before they affect critical systems.

In Conclusion

Matching the appropriate cleaning method to each specific gauge type stands as the foundational principle of effective pressure gauge maintenance. As we've explored, Bourdon tube gauges with bleed ports benefit from flow-through cleaning, while dead-end designs require vacuum chamber or fill-and-drain approaches. Digital and diaphragm gauges demand specialized handling that protects sensitive components while still achieving necessary cleanliness levels.

Consistent pressure gauge cleaning delivers multiple benefits: extended instrument life, improved measurement accuracy, enhanced system safety, and reduced downtime. The investment in proper cleaning procedures pays dividends through more reliable operations and fewer emergency gauge replacements.

For optimal gauge maintenance, implement a documented cleaning schedule based on your operational environment, utilize appropriate testing methods to verify cleanliness, and train personnel on proper handling techniques to prevent re-contamination after cleaning.

Partnering with PFC

Many organizations find that partnering with specialized service providers like Precision Fabricating & Cleaning (PFC) offers significant advantages.

With PFC's established expertise in industrial cleaning protocols and purpose-built facilities for handling everything from simple Bourdon tube gauges to complex digital instruments, PFC delivers consistent, documented results that meet stringent industry requirements.

Their comprehensive approach ensures your critical measurement devices receive the specialized care necessary for reliable, accurate operation in demanding industrial environments.

Contact PFC today to start a conversion around your cleaning needs.
