Flex Hose Inspection 101: Ensuring Reliability and Preventing Failures

Flex hoses are critical components in numerous industrial and hydraulic systems, silently performing their duties under high pressures and challenging conditions. However, their reliability can quickly become a matter of life and death if proper inspection protocols are overlooked.

A failed flex hose can lead to catastrophic consequences, including system shutdowns, equipment damage, environmental hazards, and, most importantly, severe injuries or fatalities. Regular and thorough inspections are not just best practice—they're essential for preventing these potentially disastrous outcomes.

In this post, we'll dive into the world of flex hose inspection, equipping you with the knowledge to identify early warning signs, ensure system integrity, and ultimately safeguard both your operations and your team.

Key takeaways:

1. Regularly examine the entire hose for signs of damage, including kinks, flattened areas, cover damage, blisters, and broken braid. Pay close attention to fittings, checking for corrosion and proper functionality.
2. Know the difference between Maximum Working Pressure, Maximum Proof Pressure, and Nominal Design Burst Pressure. Ensure hoses are used within their designated pressure ratings to prevent failures.
3. Install appropriate restraints for hoses over 2 feet long and pressurized to 150 psi or higher. Use hose containment grips for hoses over 4 feet long to provide additional security.
4. Store hoses properly when not in use, keeping them clean, dry, and away from extreme temperatures. Regular cleaning not only maintains the hose but also provides opportunities for quick visual inspections.
5. Keep detailed records of inspections, including photos of concerning areas. Regularly review this data to identify recurring issues or patterns that might indicate systemic problems.
6. Adopt a proactive approach to flex hose management, including regular inspections, proper storage, and timely maintenance. Consider partnering with experts like Precision Fabricating & Cleaning for specialized knowledge and support in maintaining critical components.

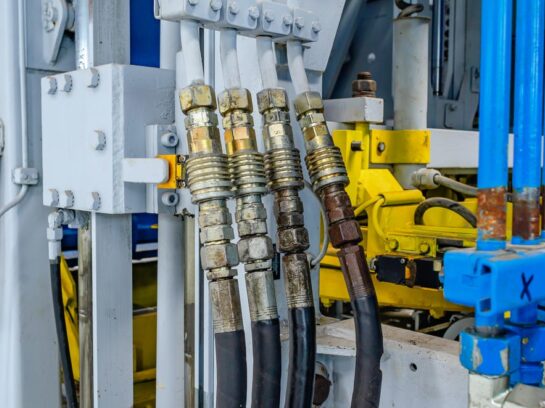

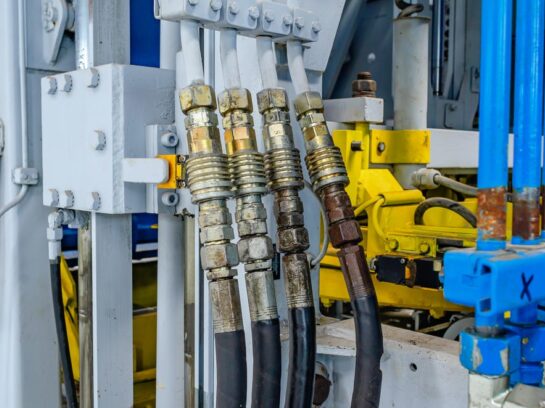

Understanding Flex Hoses

Flex hoses come in two main types: nonmetallic and metal. Nonmetallic hoses consist of a polytetrafluoroethylene or elastomeric pressure carrier tube, reinforced by fabric or wire braid. These hoses are fitted with metal end fittings, typically attached through swaging or crimping. Metal hoses, on the other hand, feature a flexible metal pressure carrier tube, often surrounded by an outer layer of wire braid. The components are joined to end fittings through welding, silver-soldering, or brazing.

Flex hoses find widespread use across various industries due to their versatility and ability to handle high-pressure fluids and gases. Common applications include:

1. Hydraulic systems in construction and manufacturing equipment
2. Fuel lines in automotive and aerospace industries
3. Chemical transfer in processing plants
4. Pneumatic systems in industrial machinery
5. HVAC systems in buildings
6. Oil and gas exploration and production
7. Food and beverage processing

Their flexibility allows for movement between fixed points and helps absorb vibration, making them invaluable in dynamic systems.

General Inspection Requirements

This is crucial to maintaining system integrity and prevent failures. While specific inspection frequencies may vary based on the application, environment, and manufacturer recommendations, a general rule of thumb is to conduct visual inspections before each use and perform thorough inspections at regular intervals, typically quarterly or semi-annually.

For critical systems or those operating in harsh conditions, more frequent inspections may be necessary.

Tools needed for a comprehensive flex hose inspection include:

1. Flashlight for detailed visual examination
2. Measuring tape to check for length changes
3. Magnifying glass for close inspection of small defects
4. Camera to document findings
5. Gloves to protect hands during handling
6. Inspection checklist or digital logging system

Safety precautions are paramount during inspections. Always:

1. Depressurize the system before inspection
2. Allow hoses to cool if they've been operating at high temperatures
3. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves
4. Ensure proper lighting and stable footing in the inspection area
5. Be cautious of potential pinch points or sharp edges on fittings
6. Follow lockout/tagout procedures if disconnecting hoses from equipment
7. Be aware of potential chemical residues in or on the hose

By adhering to these general inspection requirements, tools, and safety precautions, you can significantly reduce the risk of flex hose failures and related incidents.

Flex Hose Inspection Areas Guide

When inspecting flex hoses, focus on several critical areas to ensure safety and reliability. Begin by examining the hose for kinks or flattened sections, identifiable as sharp bends or compressed areas. These issues can reduce flow capacity, increase pressure drop, and weaken the hose structure, potentially leading to premature failure.

• Inspect the hose cover for damage, including broken wire braid, cuts, and gouges. Look for exposed or frayed wire strands, bulges indicating internal braid failure, or deep scratches penetrating the outer layer. Pay attention to worn spots that might expose the reinforcement material, as this can compromise the hose's integrity.
• Cover blisters are small, raised areas that may feel soft when pressed, signaling early-stage leakage. These can lead to exposed reinforcement, increasing the risk of environmental degradation and hose failure.
• Examine fittings for damage, focusing on thread wear, stripping, or cross-threading. Ensure swivel fittings rotate smoothly without grinding. Check all metal surfaces for corrosion signs like rust, pitting, or green patina on brass fittings.
• Assess the hose's flexibility by gently bending it and feeling for resistance. Stiffness can result from aging, extreme temperature exposure, chemical degradation, or UV damage. Compare its flexibility to a new hose if possible, and look for cracking in the outer cover when bent.
• Color changes can indicate issues: discoloration or fading might suggest chemical attack, while a network of fine cracks (known as "checking") can signal ozone damage or aging. Overall fading or dulling may indicate environmental damage.
• During inspection, use both visual and tactile methods. Run your hands along the hose to feel for irregularities, and closely examine any areas of concern. Remember, any of these issues could necessitate hose replacement. When in doubt, consult a qualified professional or replace the hose to ensure safety.

Regular, thorough inspections using this guide can significantly improve your ability to detect and prevent flex hose failures before they lead to costly or dangerous situations. By paying close attention to these key areas, you can maintain the integrity of your flex hose systems and avoid potential hazards associated with hose failure.

Additional Flex Hose Inspection Considerations

Pressure Rating Verification

When inspecting flex hoses, it's crucial to verify that the hose is being used within its designated pressure ratings. There are three key pressure ratings to be aware of:

1. Maximum Working Pressure (MAWP): This is the maximum operating pressure to which the hose should be subjected during normal use. It's also referred to as the "maximum allowable working pressure" or simply "pressure rating." Always ensure that the system pressure does not exceed this rating.
2. Maximum Proof (Hydrostat) Pressure: This is the maximum test pressure to which the hose should be subjected. It's typically established at 150% of the Maximum Working Pressure, with the hose installed straight. This pressure is used for testing purposes and should not be exceeded during normal operation.
3. Nominal Design Burst Pressure: This is the theoretical pressure at which the hose is expected to rupture. It's based on the minimum annealed ultimate tensile strength of the braid wire and corrugated hose alloys at 70°F (21°C), with the hose installed straight. This pressure should never be approached in practice and is used for design and safety factor calculations.

During inspection, verify that the hose's pressure rating is clearly marked and matches the system requirements. Ensure that the operating pressure never exceeds the Maximum Working Pressure, and that any pressure testing is done within the Maximum Proof Pressure limits.

Proper Restraint Installation

Proper restraint installation is critical for safe operation of flex hoses, especially for longer hoses or those under high pressure. Consider the following:

• Length and Pressure Requirements:

1. Hoses over 2 feet in length, pressurized to 150 psi or higher, must be restrained at each end by an approved restraint device.
2. This prevents dangerous whipping action in case of a failure, which could cause injury or damage to surrounding equipment.

• Hose Containment Grips for Longer Hoses:

1. For hoses over 4 feet in length, install a hose containment grip across each intermediate union or splice.
2. These grips provide additional security and help distribute stress along the length of the hose.

• Structural Adequacy:

1. The structure to which hose end restraints are attached should be evaluated by engineering to ensure it can withstand the forces involved in case of a failure.

During inspection, verify that all required restraints are in place, properly installed, and in good condition. Also, check that the restraints are appropriate for the hose size, length, and operating pressure. And ensure that hose containment grips are correctly positioned on longer hoses.

Remember, proper restraint installation is as crucial as the condition of the hose itself in preventing accidents and ensuring safe operation.

Best Practices for Maintaining Flex Hose Reliability

Ensuring the longevity and reliability of flex hoses requires more than just regular inspections. By implementing these best practices, you can significantly extend hose life and minimize unexpected failures.

Proper Storage When Not in Use

Proper storage is crucial for maintaining flex hose integrity.

• Always clean and dry hoses before storage to prevent mold and material degradation.
• Store them in a cool, dry place away from direct sunlight and heat sources, as extreme temperatures can cause breakdown.
• Coil hoses loosely to avoid kinks and maintain their natural shape, using a large diameter coil to prevent stress.
• Elevate hoses off the ground on dedicated racks or hooks to prevent damage and contamination.

Finally, use end caps or plugs to protect threaded ends and prevent internal contamination.

Regular Cleaning and Maintenance

Routine cleaning not only keeps hoses in good condition but also provides opportunities for quick visual inspections.

Clean hoses regularly with mild soap and water, avoiding harsh chemicals that could degrade the material.

For hoses carrying particulate matter, flush with an appropriate cleaning solution after use to prevent buildup. If applicable, lubricate swivel fittings according to manufacturer recommendations, and conduct periodic pressure tests as recommended to ensure ongoing integrity.

Documenting Inspection Results and Trends

Thorough documentation is key to effective long-term maintenance. Keep comprehensive records of each inspection, including date, inspector name, observations, and actions taken.

• Use standardized forms to ensure consistency in data collection across different inspectors and time periods.
• Include photos of any concerning areas for future reference and comparison.
• Utilize digital asset management systems to track inspection history, making it easier to spot trends over time.
• Regularly review this data to identify recurring issues or patterns that might indicate systemic problems.

By adhering to these best practices in storage, cleaning, maintenance, and documentation, you create a proactive maintenance culture that maximizes flex hose reliability and lifespan.

This approach not only prevents unexpected failures but also optimizes your maintenance budget by extending hose life and improving predictive maintenance capabilities.

In Conclusion:

As we've explored throughout this guide, flex hose inspection is a critical aspect of maintaining safe and efficient operations across various industries.

Regular, thorough inspections following these guidelines are crucial in preventing unexpected failures that could lead to costly downtime, environmental hazards, or even safety incidents. By adopting a proactive approach to flex hose management, including proper storage, regular cleaning, and diligent documentation of inspection results, you can significantly extend the lifespan of your hoses and optimize your maintenance budget.

However, managing an effective flex hose inspection and maintenance program can be challenging, especially for businesses focused on their core operations. This is where partnering with experts like Precision Fabricating & Cleaning can make a significant difference.

As your outsourced partner for precision cleaning components, Precision Fabricating & Cleaning brings specialized knowledge, state-of-the-art equipment, and years of experience to ensure your flex hoses and other critical components are maintained to the highest standards.

By leveraging their expertise, you can ensure compliance with industry regulations, minimize the risk of failures, and focus on what you do best – running your business. Don't leave the reliability of your systems to chance.

Embrace a proactive approach to flex hose management today, and consider how Precision Fabricating & Cleaning can support your maintenance needs for optimal performance and peace of mind by contacting them today.
